43
Global
Height rank

30 Hudson Yards

New York City
  • Facts
  • Login

    You must be a CVU Member to view this resource.

    Metrics
Height 387.1 m / 1,270 ft
Floors 73
Official Name
The current legal building name.

30 Hudson Yards

Other Names
Other names the building has commonly been known as, including former names, common informal names, local names, etc.

Hudson Yards Tower A, Manhattan Tower, Hudson Yards North Tower

Name of Complex
A complex is a group of buildings which are designed and built as pieces of a greater development.

Hudson Yards

Type
CVU collects data on two major types of tall structures: 'Buildings' and 'Telecommunications / Observation Towers.' A 'Building' is a structure where at least 50% of the height is occupied by usable floor area. A 'Telecommunications / Observation Tower' is a structure where less than 50% of the structure's height is occupied by usable floor area. Only 'Buildings' are eligible for the CVU 'Tallest Buildings' lists.

Building

Status
Completed
Architecturally Topped Out
Structurally Topped Out
Under Construction
Proposed
On Hold
Never Completed
Vision
Competition Entry
Canceled
Proposed Renovation
Under Renovation
Renovated
Under Demolition
Demolished

Completed

Completion

2019

Country
CVU follows the United Nations's definition of Country, and thus uses the lists and codes established by that organization.

United States

City
CVU follows the United Nations's definition of City, and thus uses the lists and codes established by that organization.

New York City

Address

500 West 33rd Street

Function
A single-function tall building is defined as one where 85% or more of its usable floor area is dedicated to a single usage. Thus a building with 90% office floor area would be said to be an "office" building, irrespective of other minor functions it may also contain.

A mixed-use tall building contains two or more functions (or uses), where each of the functions occupy a significant proportion of the tower's total space. Support areas such as car parks and mechanical plant space do not constitute mixed-use functions. Functions are denoted on CVU "Tallest Building" lists in descending order, e.g., "hotel/office" indicates hotel function above office function.

Office

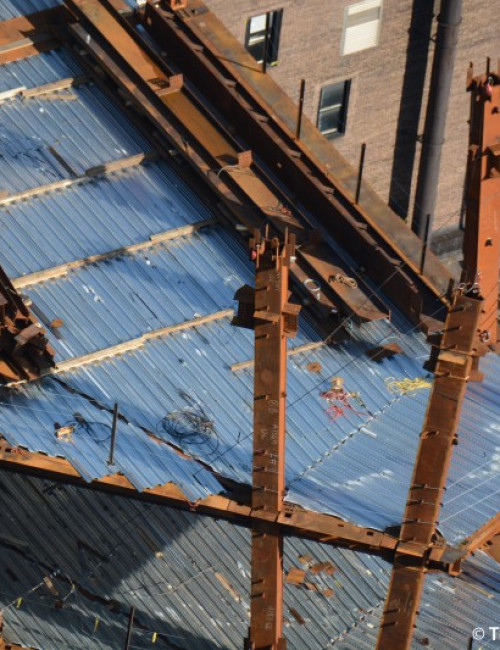

Structural Material
All-Steel
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from steel. Note that a building of steel construction with a floor system of concrete planks or concrete slab on top of steel beams is still considered an “all-steel” structure as the concrete elements are not acting as the primary structure.

All-Concrete
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from concrete which has been cast in place and utilizes steel reinforcement bars and/or steel reinforced concrete which has been precast as individual components and assembled together on-site.

All-Timber
Both the main vertical/lateral structural elements and the floor spanning systems are constructed from timber. An all-timber structure may include the use of localized non-timber connections between timber elements. Note that a building of timber construction with a floor system of concrete planks or concrete slab on top of timber beams is still considered an “all-timber” structure as the concrete elements are not acting as the primary structure.

Mixed-Structure
Utilizes distinct systems (e.g. all-steel, all-concrete, all-timber), one on top of the other. For example, a Steel Over Concrete indicates an all-steel structural system located on top of an all-concrete structural system, with the opposite true of Concrete Over Steel.

Composite
A combination of materials (e.g. steel, concrete, timber) are used together in the main structural elements. Examples include buildings which utilize: steel columns with a floor system of reinforced concrete beams; a steel frame system with a concrete core; concrete-encased steel columns; concrete-filled steel tubes; etc. Where known, the CVU database breaks out the materials used within a composite building’s primary structural elements.

All-Steel

Energy Label

LEED Gold BD+C: Core and Shell

Official Website

Hudson Yards

Height
Architectural
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the architectural top of the building, including spires, but not including antennae, signage, flag poles or other functional-technical equipment. This measurement is the most widely utilized and is employed to define the Council on Vertical Urbanism (CVU) rankings of the "World's Tallest Buildings."

387.1 m / 1,270 ft

To Tip
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the highest point of the building, irrespective of material or function of the highest element (i.e., including antennae, flagpoles, signage and other functional-technical equipment).
387.1 m / 1,270 ft
Occupied
Height is measured from the level of the lowest, significant, open-air, pedestrian entrance to the highest occupied floor within the building.
342.1 m / 1,123 ft
Observatory
336.7 m / 1,104 ft
Floors Above Ground
The number of floors above ground should include the ground floor level and be the number of main floors above ground, including any significant mezzanine floors and major mechanical plant floors. Mechanical mezzanines should not be included if they have a significantly smaller floor area than the major floors below. Similarly, mechanical penthouses or plant rooms protruding above the general roof area should not be counted. Note: CVU floor counts may differ from published accounts, as it is common in some regions of the world for certain floor levels not to be included (e.g., the level 4, 14, 24, etc. in Hong Kong).

73

Floors Below Ground
The number of floors below ground should include all major floors located below the ground floor level.

1

# of Elevators
Number of Elevators refers to the total number of elevator cars (not shafts) contained within a particular building (including public, private and freight elevators).

59

Tower GFA
Tower GFA refers to the total gross floor area within the tower footprint, not including adjoining podiums, connected buildings or other towers within the development.

241,548 m² / 2,600,001 ft²

Rankings

  • By Location
#
43
Tallest in the World
#
8
Tallest in North America
#
8
Tallest in United States
#
6
Tallest in New York City

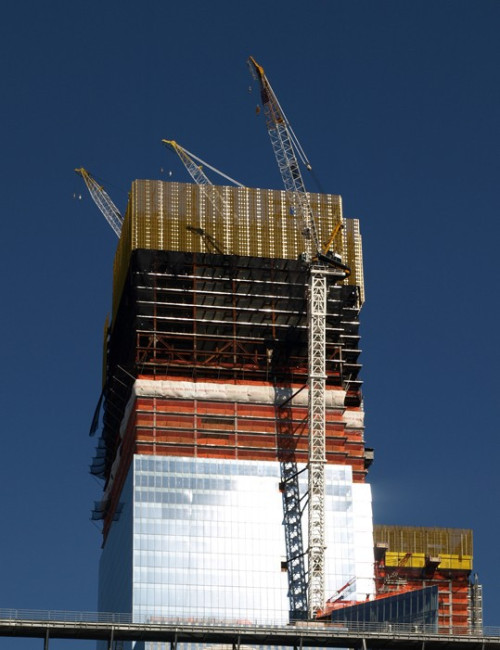

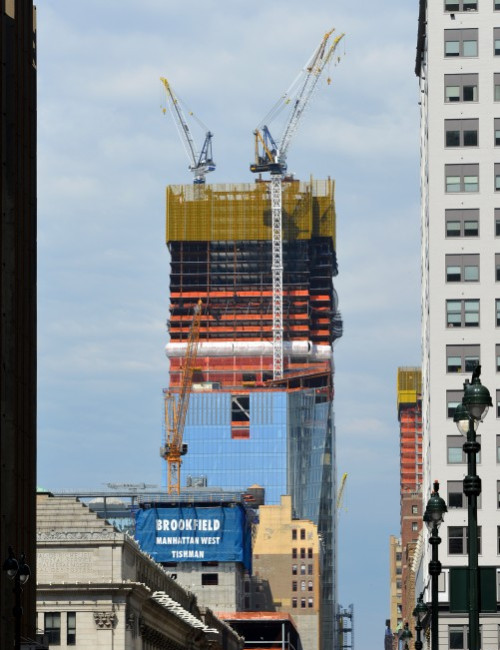

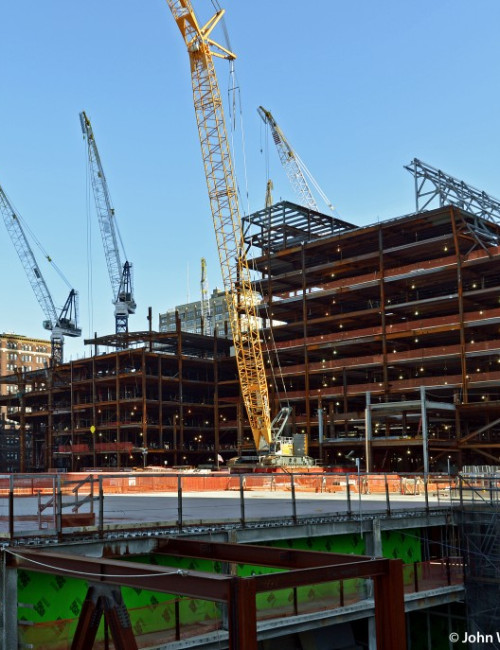

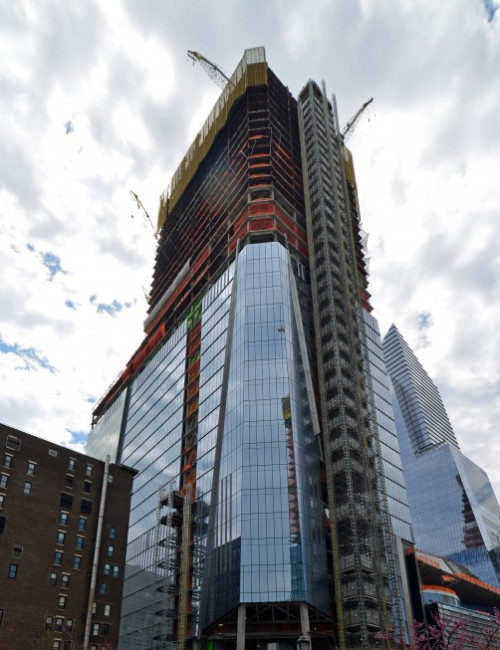

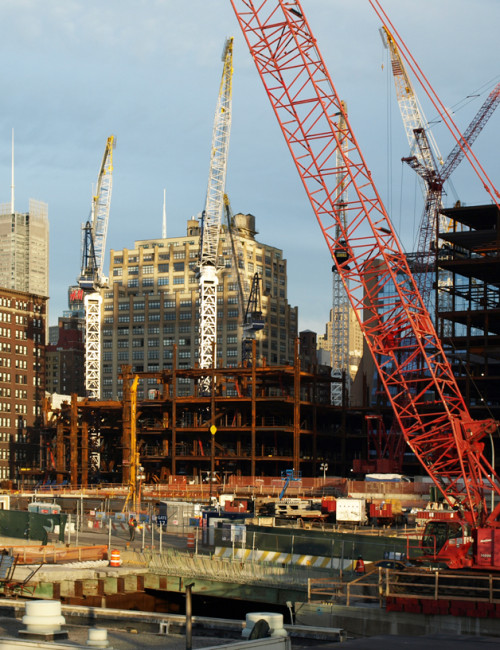

Construction Schedule

2011

Proposed

2014

Construction Start

2019

Completed

Architect
Design

Usually involved in the front end design, with a "typical" condition being that of a leadership role through either Schematic Design or Design Development, and then a monitoring role through the CD and CA phases.
Kohn Pedersen Fox Associates
Structural Engineer
Design

The Design Engineer is usually involved in the front end design, typically taking the leadership role in the Schematic Design and Design Development, and then a monitoring role through the CD and CA phases.
Thornton Tomasetti
Peer Review

The Peer Review Engineer traditionally comments on the information produced by another party, and to render second opinions, but not to initiate what the design looks like from the start.
CAST CONNEX
MEP Engineer
Design

The Design Engineer is usually involved in the front end design, typically taking the leadership role in the Schematic Design and Design Development, and then a monitoring role through the CD and CA phases.
Jaros, Baum & Bolles
Contractor
Main Contractor

The main contractor is the supervisory contractor of all construction work on a project, management of sub-contractors and vendors, etc. May be referred to as "Construction Manager," however, for consistency CTBUH uses the term "Main Contractor" exclusively.
Tishman Construction
Other Consultant

Other Consultant refers to other organizations which provided significant consultation services for a building project (e.g. wind consultants, environmental consultants, fire and life safety consultants, etc).
Acoustics
Cerami & Associates
Code
Code Consultants, Inc.
Damping
GERB Vibration Control Systems, Inc
Environmental
Langan Engineering
Geotechnical
Langan Engineering
Land Surveyor
Langan Engineering
Wind
RWDI
Material Supplier

Material Supplier refers to organizations which supplied significant systems/materials for a building project (e.g. elevator suppliers, facade suppliers, etc).
Aluminium
POHL Group
Cladding
Enclos Corp.; Permasteelisa Group; POHL Group
Formwork
Doka GmbH
Sealants
Sika Services AG
Steel
ArcelorMittal; CAST CONNEX
Owner/Developer
Oxford Properties Group Inc.; Related Companies
Architect
Design

Usually involved in the front end design, with a "typical" condition being that of a leadership role through either Schematic Design or Design Development, and then a monitoring role through the CD and CA phases.
Kohn Pedersen Fox Associates
Structural Engineer
Design

The Design Engineer is usually involved in the front end design, typically taking the leadership role in the Schematic Design and Design Development, and then a monitoring role through the CD and CA phases.
Thornton Tomasetti
Peer Review

The Peer Review Engineer traditionally comments on the information produced by another party, and to render second opinions, but not to initiate what the design looks like from the start.
CAST CONNEX
MEP Engineer
Design

The Design Engineer is usually involved in the front end design, typically taking the leadership role in the Schematic Design and Design Development, and then a monitoring role through the CD and CA phases.
Jaros, Baum & Bolles
Contractor
Main Contractor

The main contractor is the supervisory contractor of all construction work on a project, management of sub-contractors and vendors, etc. May be referred to as "Construction Manager," however, for consistency CTBUH uses the term "Main Contractor" exclusively.
Tishman Construction
Other Consultant

Other Consultant refers to other organizations which provided significant consultation services for a building project (e.g. wind consultants, environmental consultants, fire and life safety consultants, etc).
Acoustics
Cerami & Associates
Civil
Philip Habib & Associates
Code
Code Consultants, Inc.
Damping
GERB Vibration Control Systems, Inc
Energy Concept
Vidaris, Inc.
Environmental
Langan Engineering
Geotechnical
Langan Engineering
Land Surveyor
Langan Engineering
Observatory
CS Facades S.r.l.
Sustainability
Vidaris, Inc.
Wind
RWDI
Material Supplier

Material Supplier refers to organizations which supplied significant systems/materials for a building project (e.g. elevator suppliers, facade suppliers, etc).
Aluminium
POHL Group
Cladding
Enclos Corp.; Permasteelisa Group; POHL Group
Formwork
Doka GmbH
Hardware
Empire Architectural Metal & Glass Corp.
Sealants
Sika Services AG
Steel
ArcelorMittal; COREY; CAST CONNEX; Cimolai

CVU Awards & Distinctions

Structural Engineering Award 2022 Award of Excellence

2022 CVU Awards

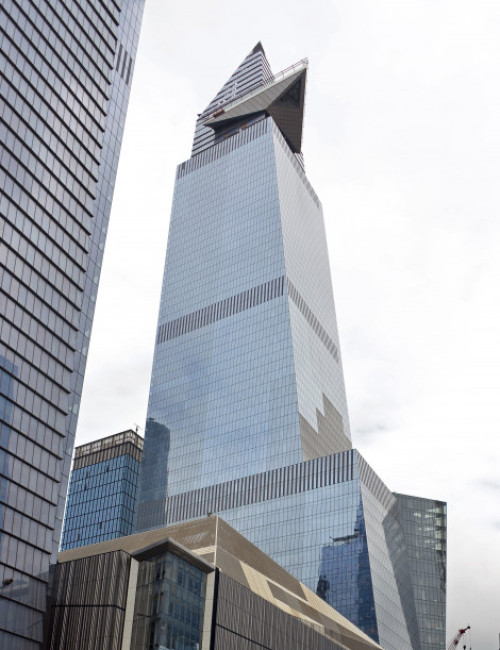

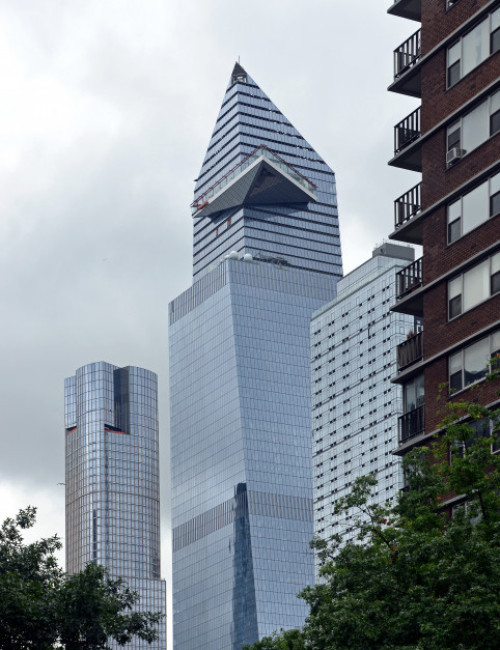

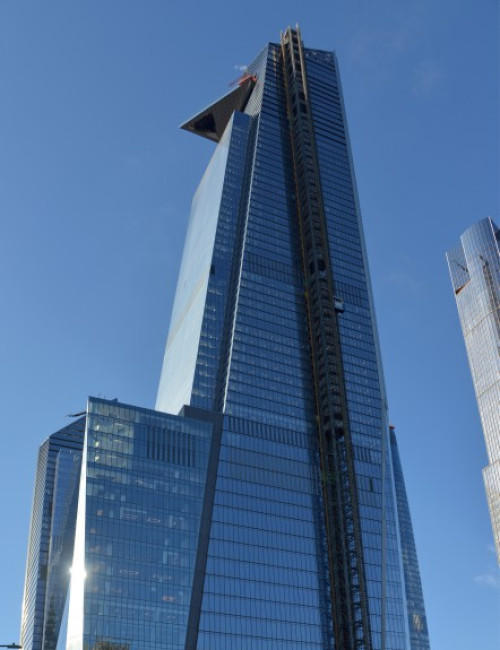

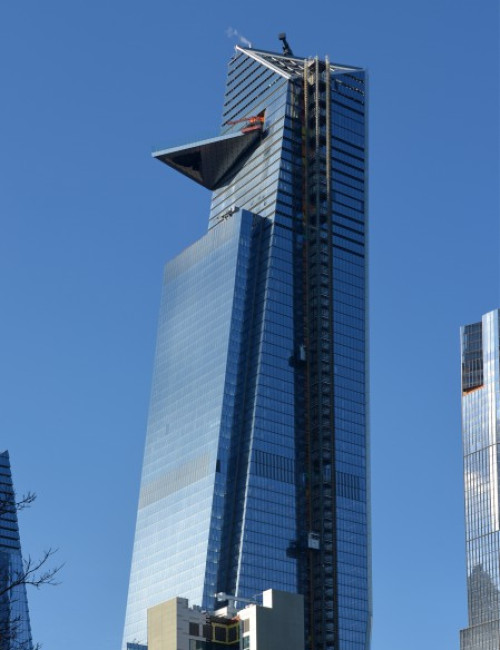

About 30 Hudson Yards

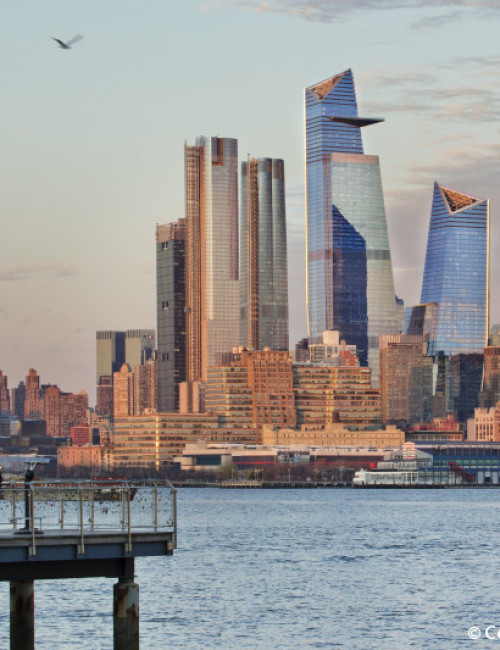

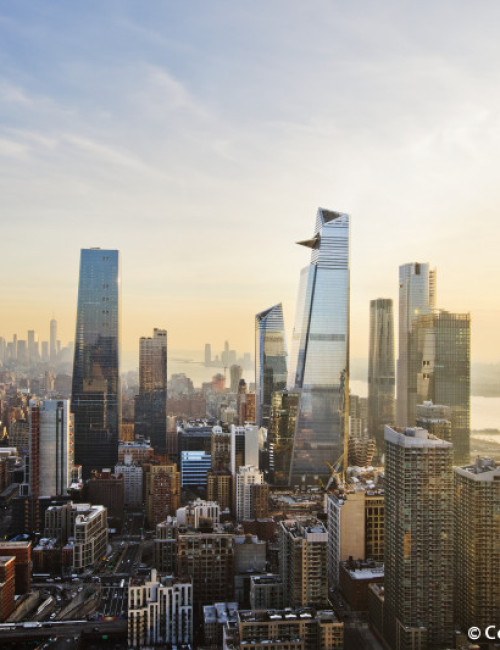

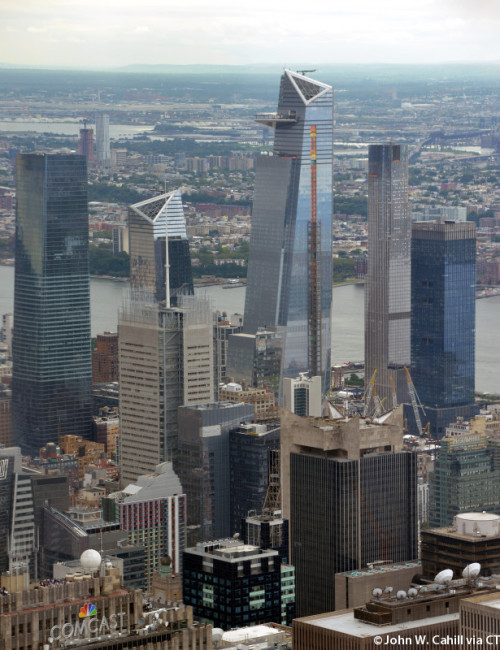

30 Hudson Yards will anchor the Hudson Yards development, touted as the largest private real estate development in United States history. Located on the west side of Manhattan, Hudson Yards is to become a new center for retail, commerce, and culture for the area. The whole development is intended to be an integrated “city within a city,” incorporating residential and office buildings, streets, parks, utilities, and commercial space into one complete whole. Built on top of an active rail yard, and located steps away from a recent subway extension, Hudson Yards will be thoroughly incorporated into the larger urban fabric.

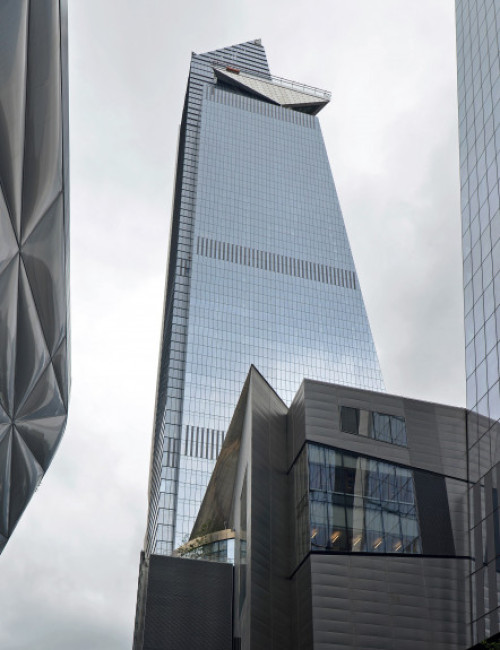

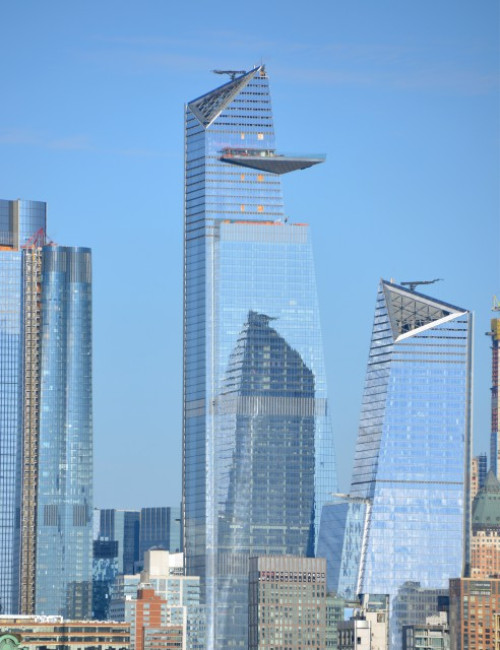

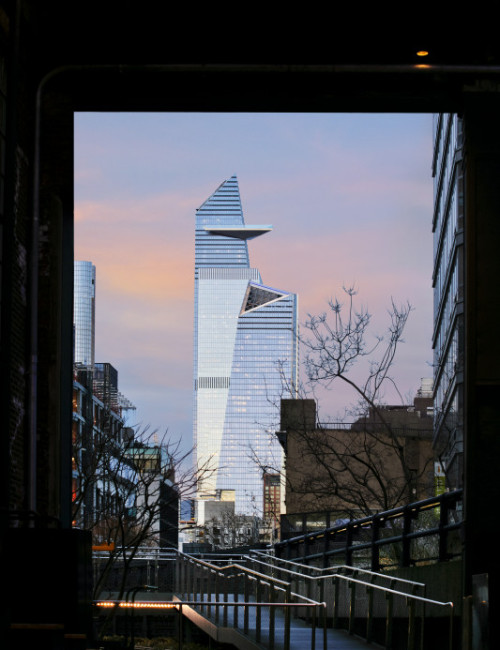

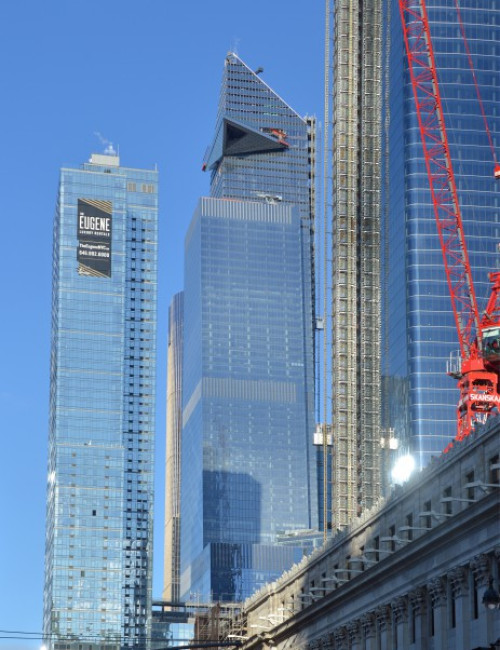

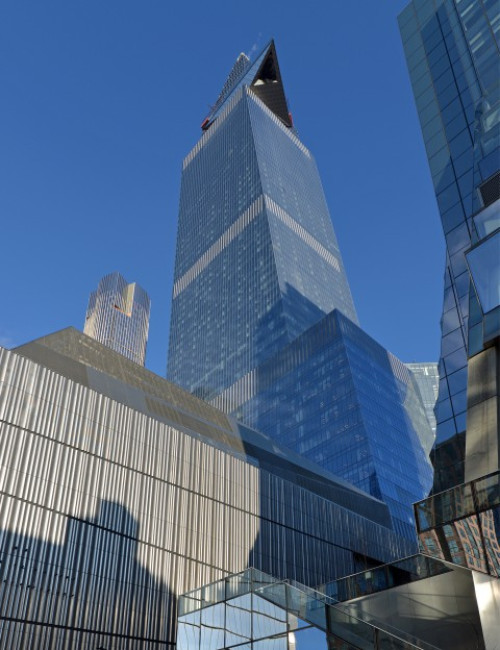

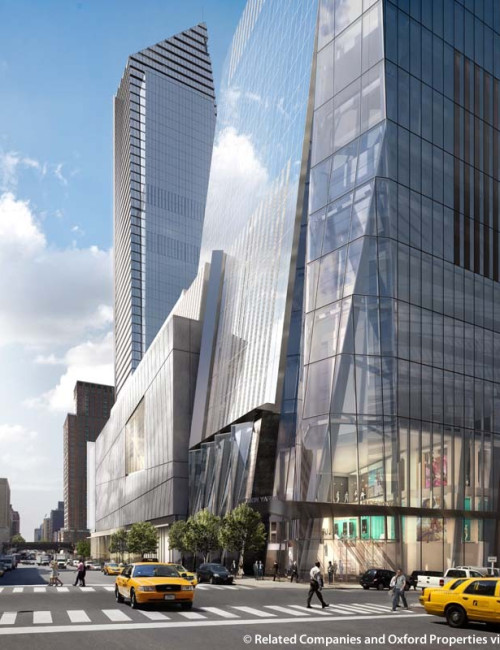

As the largest planned building in the development, 30 Hudson Yards stands out not just for its size, but for how it relates to the nearby towers through a series of setbacks and ledges. Rising from a shared podium, 10 and 30 Hudson Yards have a mirrored relationship; they gently taper away from each other, creating a “v”-shaped negative space between them. This strong visual interaction is meant to anchor the dynamic architectural presence of the development.

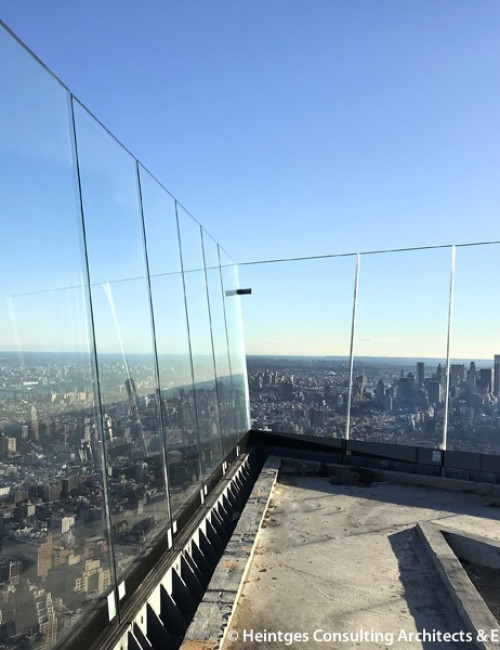

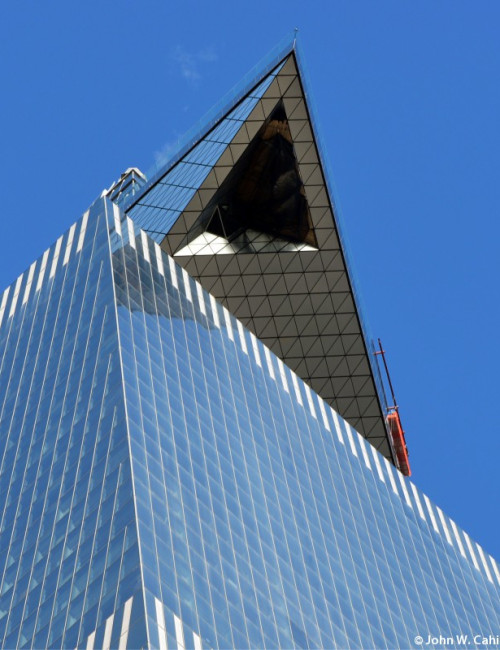

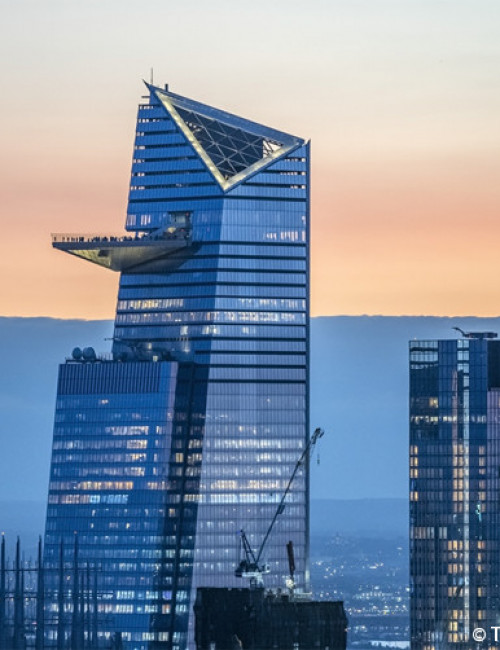

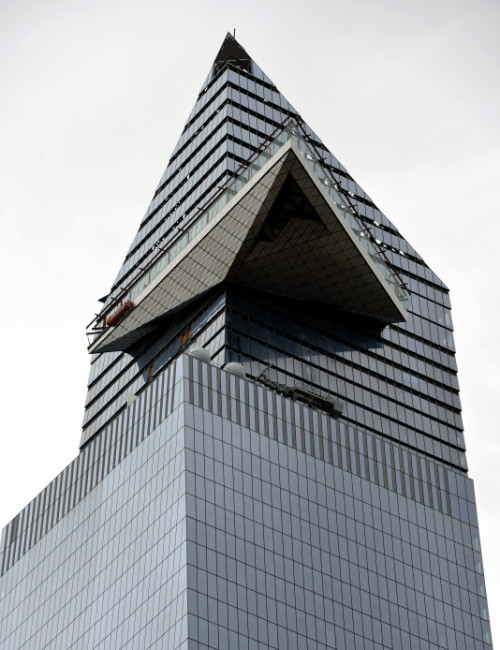

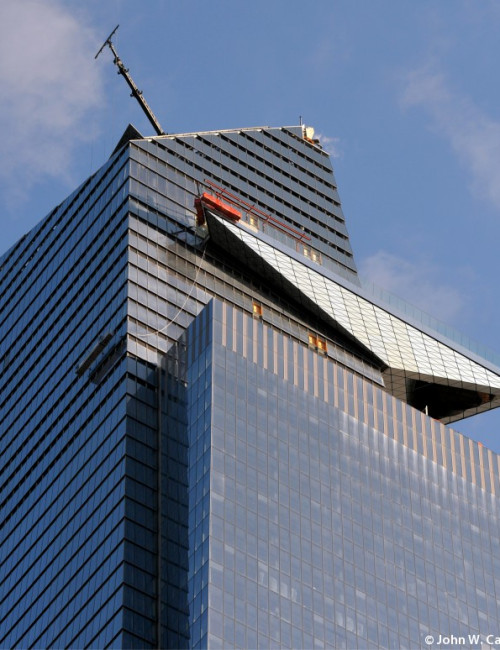

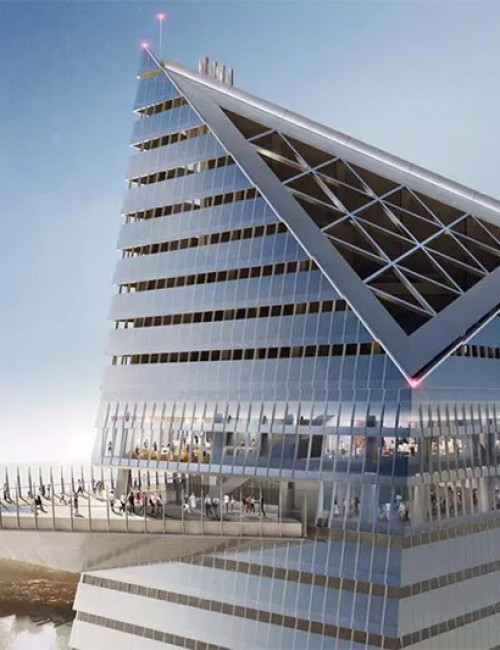

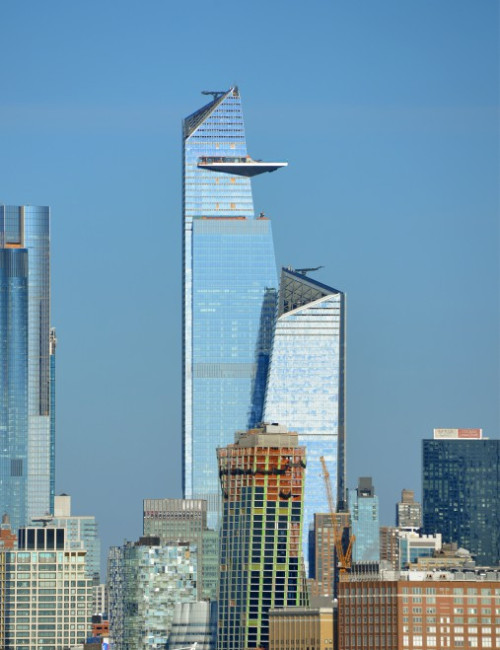

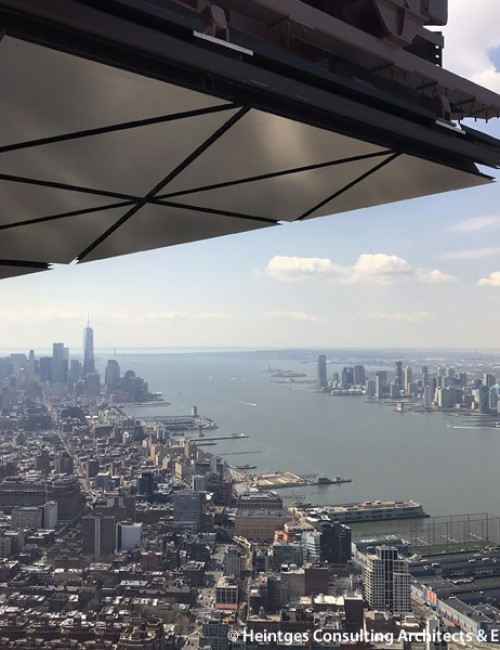

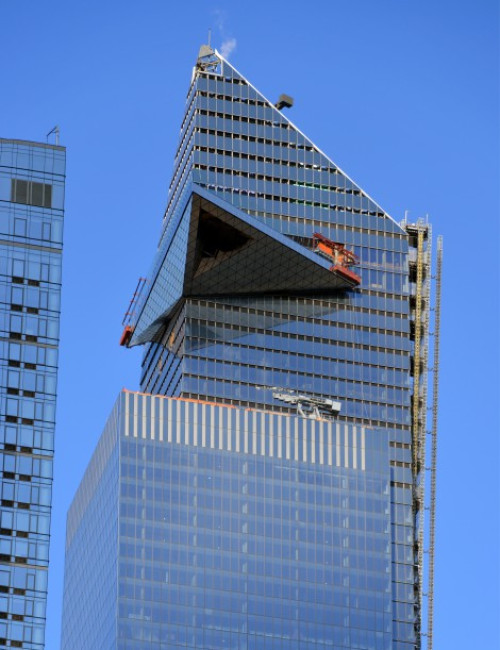

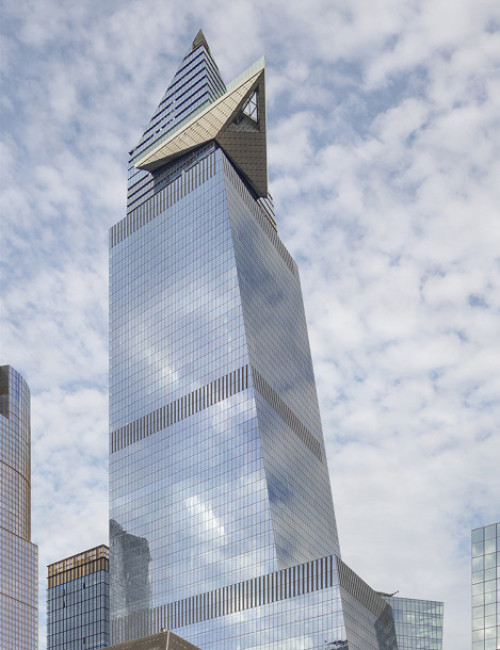

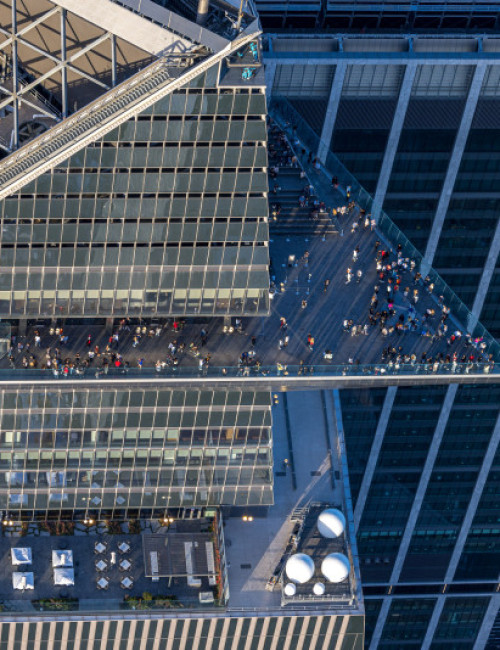

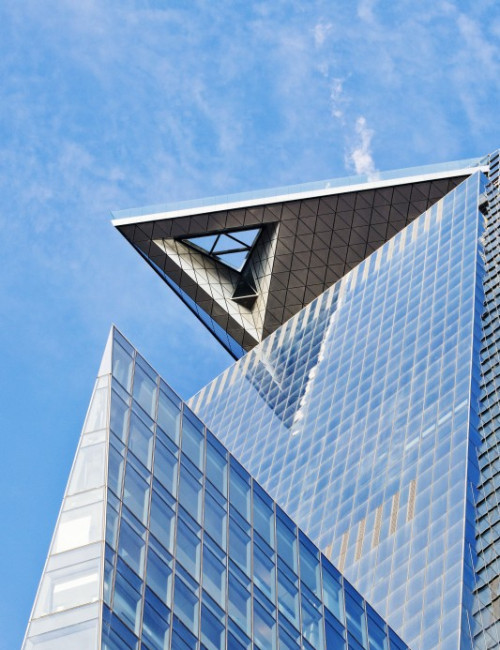

Unlike most buildings in the complex, the tower will be devoted primarily to office space. It will feature column-free floor plans and floor-to-ceiling glass in order to maximize surrounding views, as well as a cantilevered observation deck that will be open to the public. Several sustainable design solutions will be present on site, including organic waste collection and on-site energy generation, resulting in an expected LEED Gold certification and a 30 percent increase in energy efficiency when compared to the average New York City building. As the mainstay of a development that seeks to redefine Manhattan’s west side, 30 Hudson Yards is poised to make a significant and enduring mark on The Big Apple.

CVU Awards & Distinctions

Structural Engineering Award 2022 Award of Excellence

2022 CVU Awards
